Description

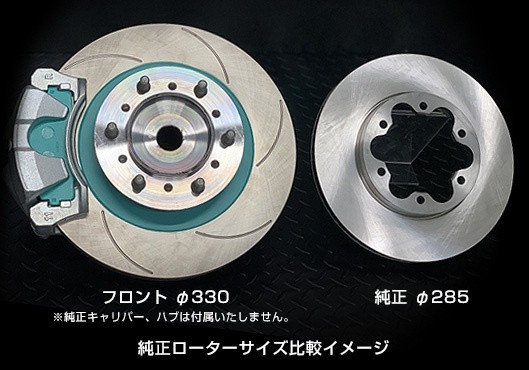

Set of dedicated brackets, pads and large-diameter one-piece rotors, retaining the original calipers and brake lines without changing wheel offset. Fits wheels from 17 inches, subject to wheel design. Dedicated TYPE PS pads with excellent braking control are standard.
The rotors and pad shape are specific to this kit. Requires wheels of at least 17 inches; some designs will not fit. Check wheel clearance against the dimensional drawing before installation. The backing plate must be modified. Original wheels cannot be used. The source disc price refers to a set of 2 discs.
Specifications and prices may change, and manufacture or sales may end without notice.

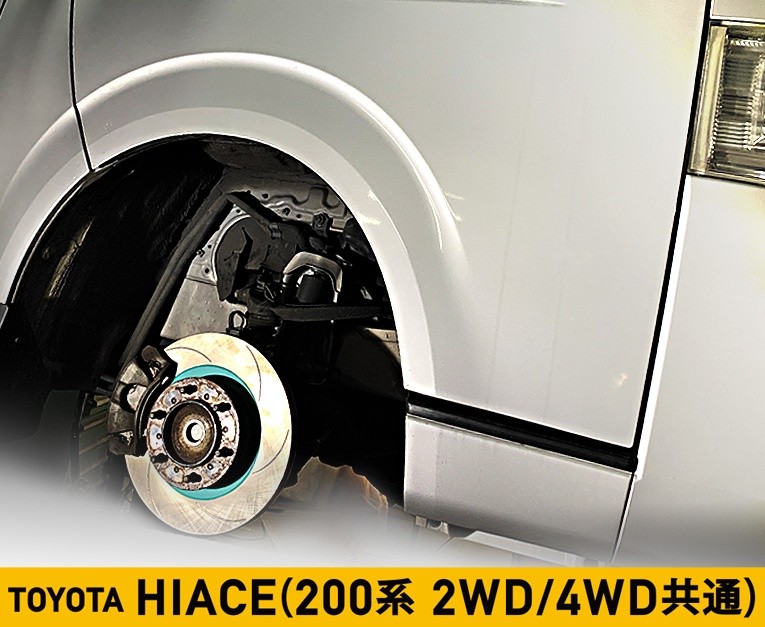

Project μ Front brake kit Projectμ BIG ROTOR KIT FRONT for TOYOTA HIACE 200(2WD/4WD) SPPT117S6 SPPT117S6
Front brake kit · BIG ROTOR KIT FRONT for TOYOTA HIACE 200(2WD/4WD)
SKU: SPPT117S6
To Order
This product may be discontinued. Please contact us to confirm availability.
- Publication date
- Manufacturer price when added
- ¥35,000
This is the historical manufacturer price, excluding our markup and shipping. The current selling price is shown on the product page.
Source ↗
$338
This item is shipped from Japan on order. Delivery takes 2 to 4 weeks. Shipping cost is calculated separately.
The price shown is for the product only. Our manager will inform you of the shipping cost after placing your order.
Specifications
Structure: One-piece (1Piece)
Material: Disc: FC cast iron; bracket: steel
Slots: Curved slots: 6 per side, 12 across both sides
Components: Dedicated brackets, large-diameter rotors, dedicated brake pads, complete bolt set
HIACE 200 (2WD/4WD): BRK-F33028-H201; ∅330×28mm
Colour: green
KDH200/KDH201/KDH205/KDH206/KDH211/KDH220/KDH221/KDH222/KDH223/KDH225/KDH227B/K/V; TRH200/TRH211/TRH216/TRH221/TRH223/TRH226/TRH228B/TRH228K/TRH228V
Replacement discs (left + right): SPPT117S6; replacement TYPE PS pads: F011N4
Part number: SPPT117S6
